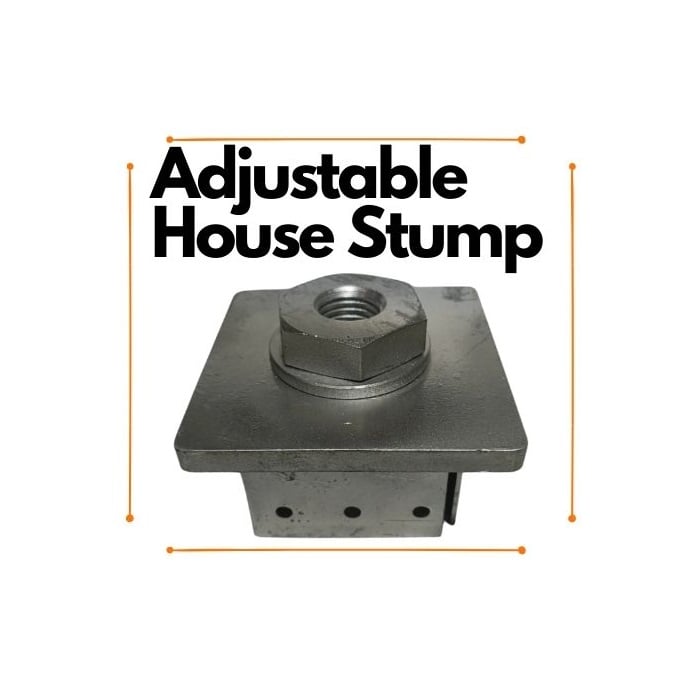

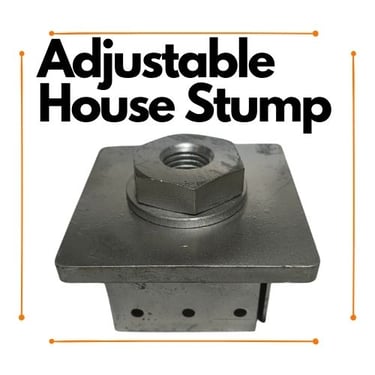

Dowd House Stump Top Plate (Screw down)

Used for subframe of homes, decks, portable buildings or granny flats.

• Quick and easy to use when setting a level height.

• Adjust the height with a spanner.

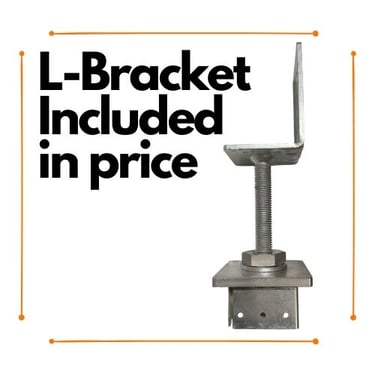

• Comes with a HEAVY DUTY L-Bracket (6mm steel). 130mm of adjustable height.

• Hot Dipped Galvanised coating to survive nearly all outdoor weather conditions *

• Can be used to prop existing bearers that have sagged over time.

• Ease of use. Use screws to fit on a steel post. NO WELDING REQUIRED

• Fire and termite proof - termite inspection point (40mm of thread needs to be visible to comply)

• Heavy Duty construction - 10mm thick steel plate

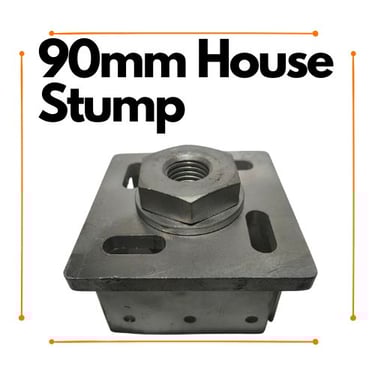

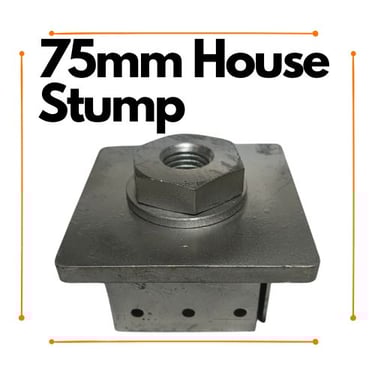

• Suitable for 75mm & 90mm SHS Steel

*not suitable within close proximity to pools or within 50m of seawater

Dimensions

• Adjustable height range - 110mm

• 110x110mm

  base plate

• 24mm threaded rod with L-Bracket

• Load rating 5000kg per support bracket

• 12mm & 6mm holes on L-Bracket

• 6mm thick steel on L-Bracket with reinforcing ribs for extra strength

Testing and Certification

click here
