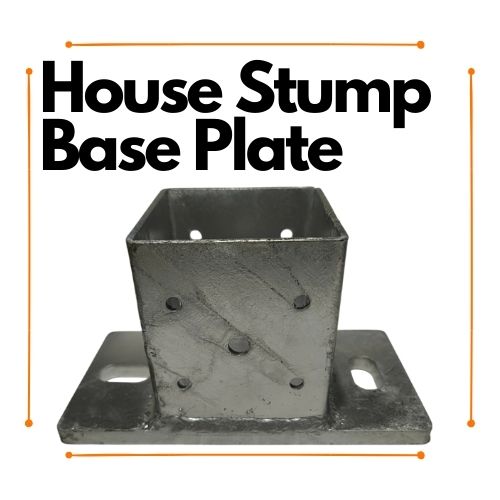

Dowd House Stump Base Plate

Used for securing SHS posts down to a concrete pier.

• Adjustable base holes to allow you to perfectly align all your supports

• Hot Dipped Galvanised coating to survive nearly all outdoor weather conditions *

• Extra strong securing with 8 holes (4 on each side) to attach tek screws and 8mm bolt hole in the middle

• Ease of use. Use screws to fit on a steel post. NO WELDING REQUIRED

• Heavy Duty construction - 10mm thick steel plate

• Suitable for 75mm & 90mm SHS Steel

*not suitable within close proximity to pools or within 50m of seawater

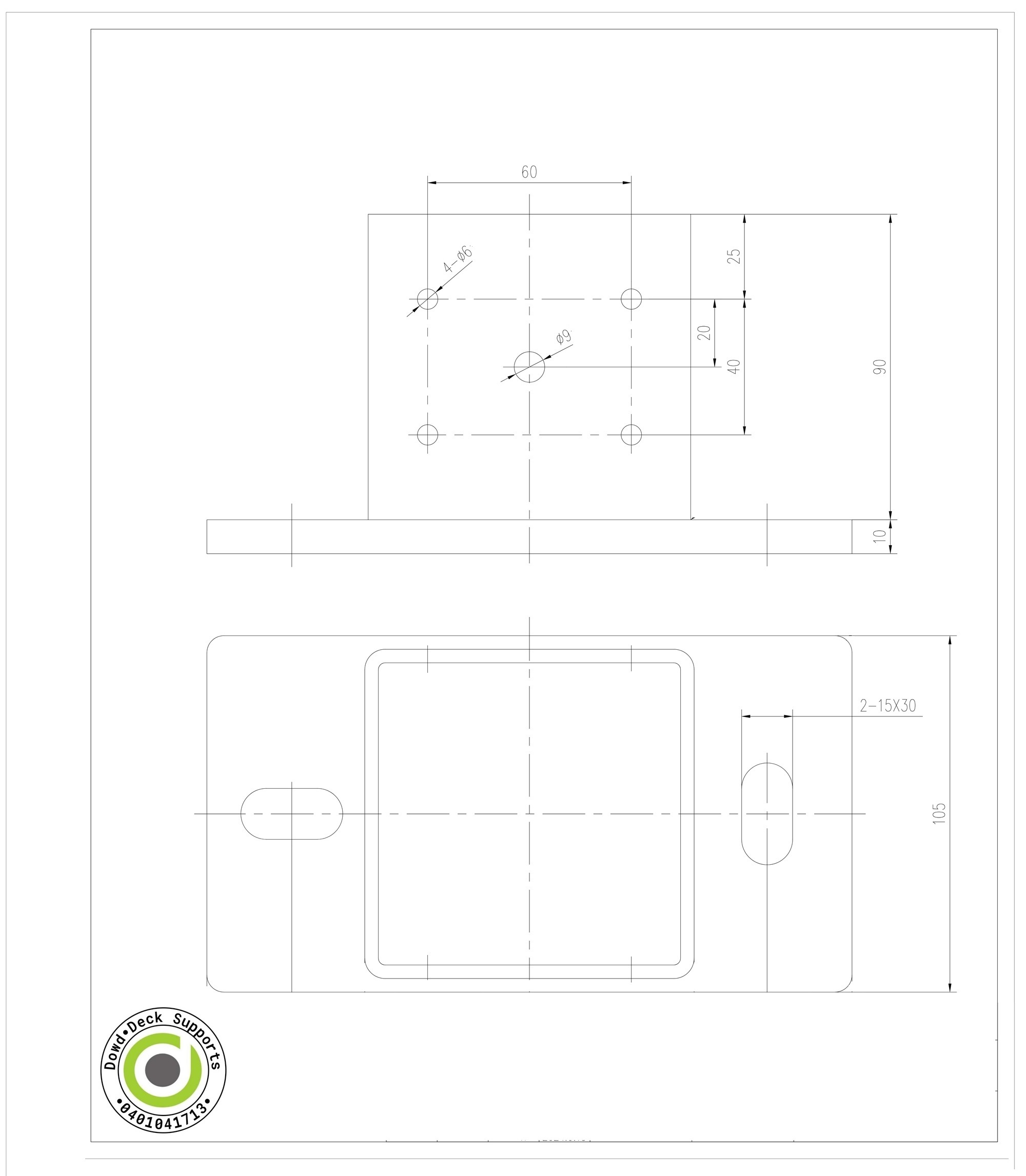

Dimensions

• Height - 90mm

• 180x90mm

  base plate (10mm thick base)

• 24mm threaded rod with L-Bracket

• 6mm holes to suit tek screws. 8mm hole for optional bolt

Testing and Certification

click here
