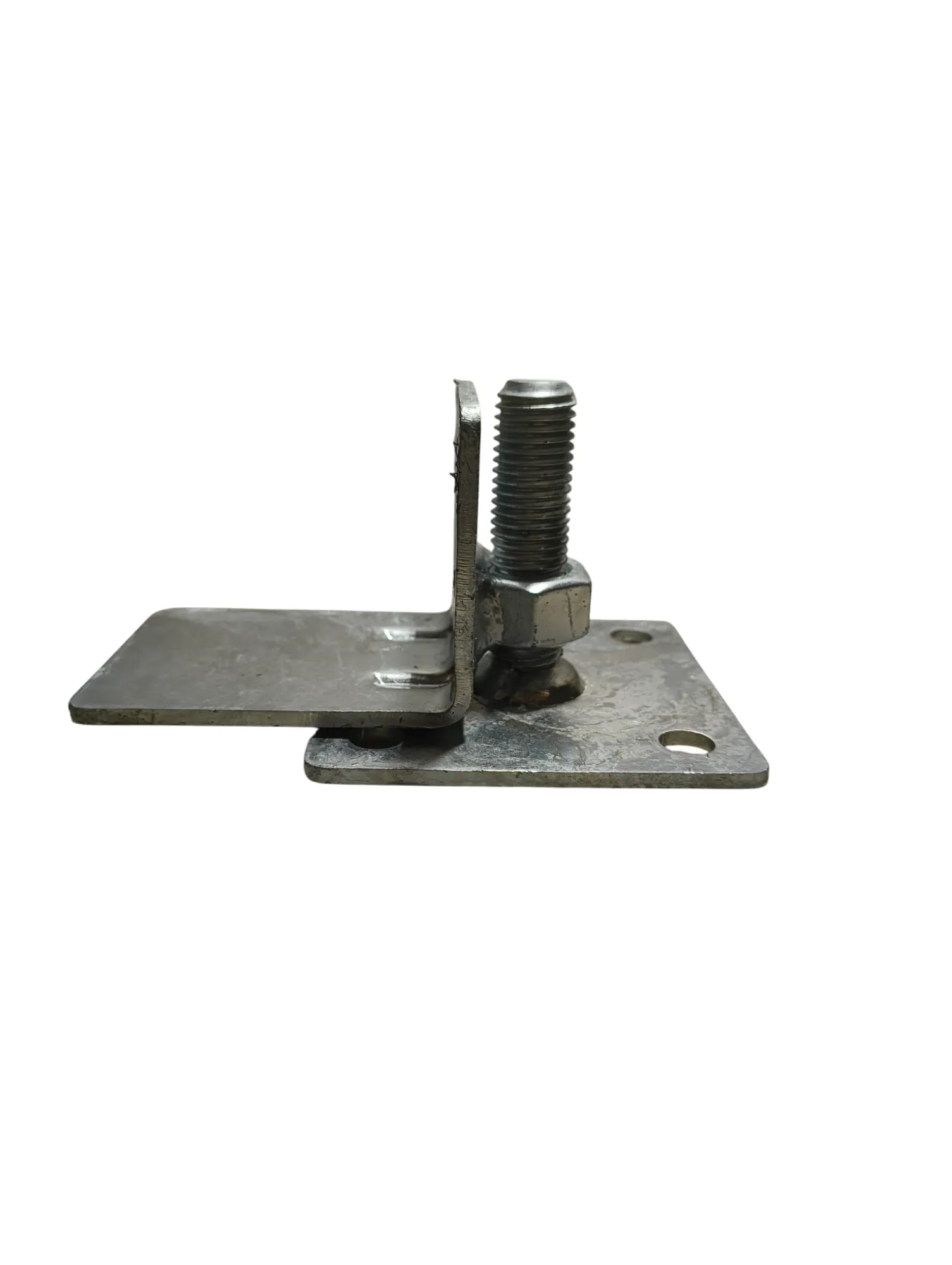

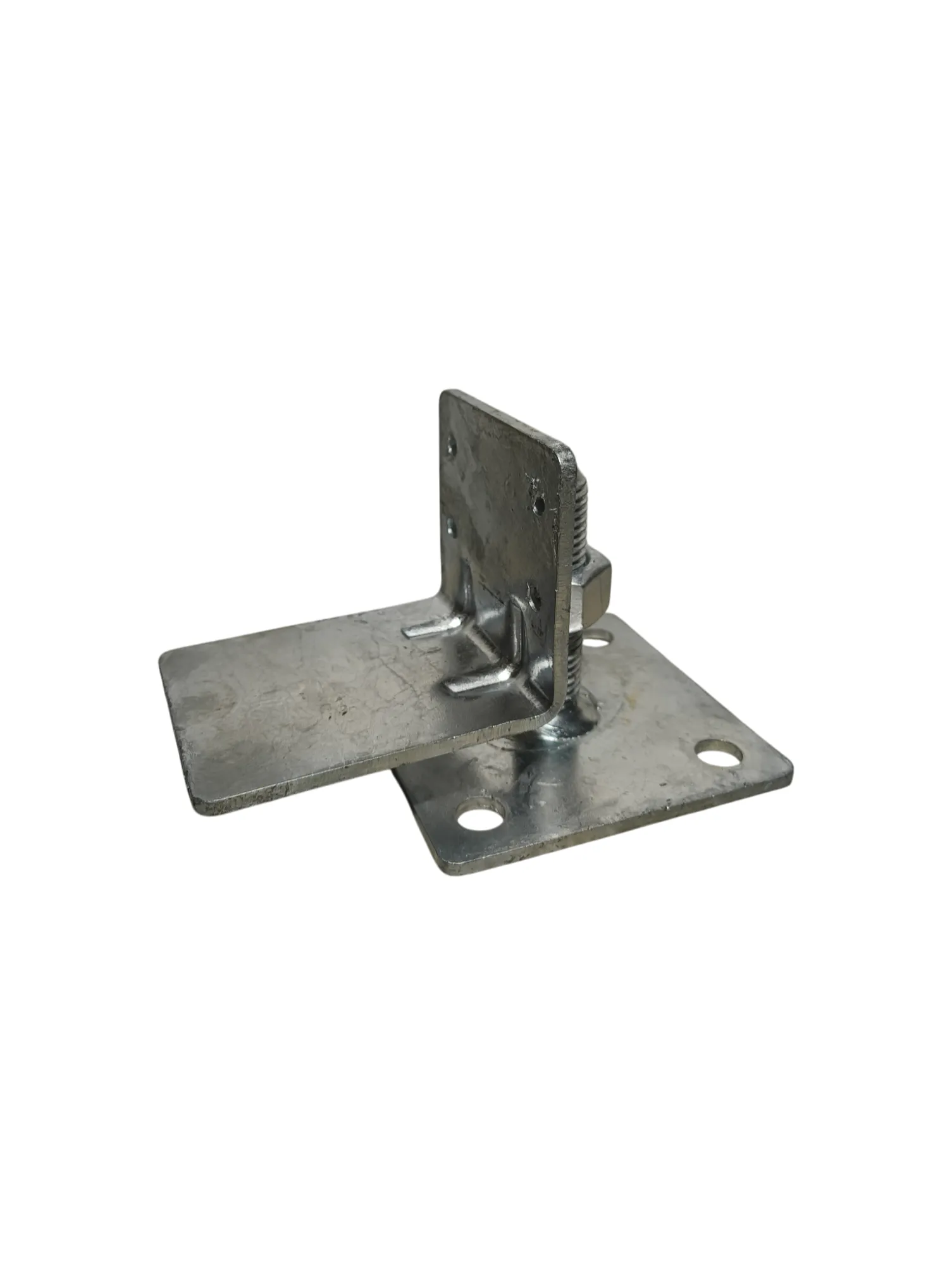

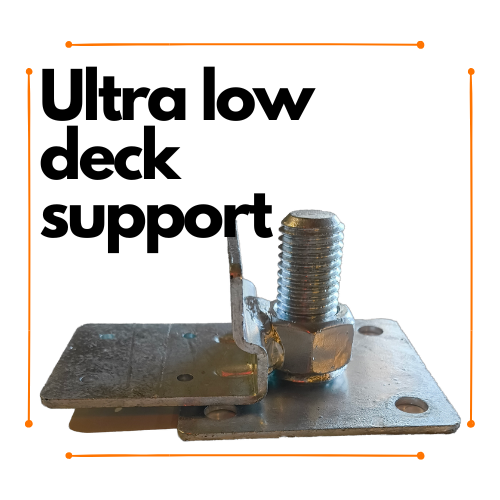

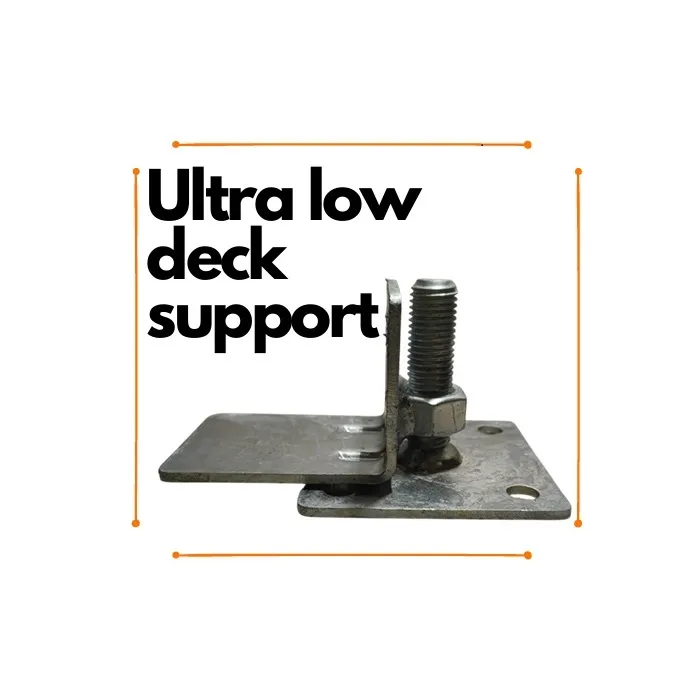

Dowd Adjustable Bearer Support Low Level

• New design Ultra Low Model 2nd Generation design

• Now suitable for wood OR aluminum bearers and joists.

• The unique shape allows for joists with 90degree sharp angles (typical steel bends wont allow it)

• Can be used for bearers or joists.

• Makes deck building easy and even quicker to adjust height

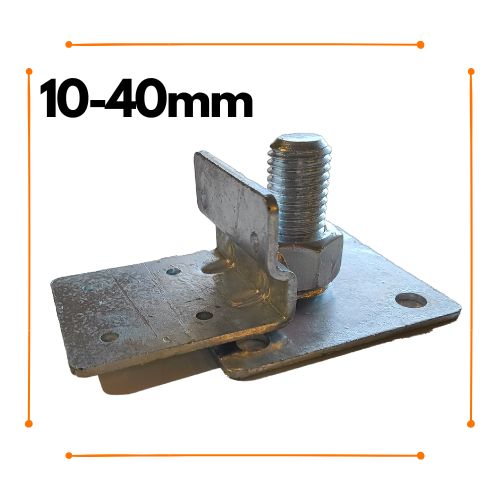

• Adjustable height ranges from 10mm - 40mm

• For use on low deck applications where floor is not level

• SUPERIOR rust resistance with Hot Dipped Galvanised Coating

• Keeps timber off the ground to prevent moisture build up

• Variety of uses - decks, ramps, stairs, post supports, kitchen cabinets

*not suitable within close proximity to pools or within 50m of seawater / corrosive water

Other height sizes (50-485mm) can be viewed here

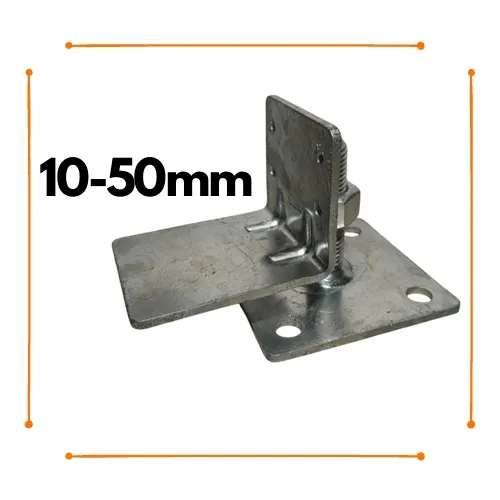

Adjustable height range from 10mm - 50mm

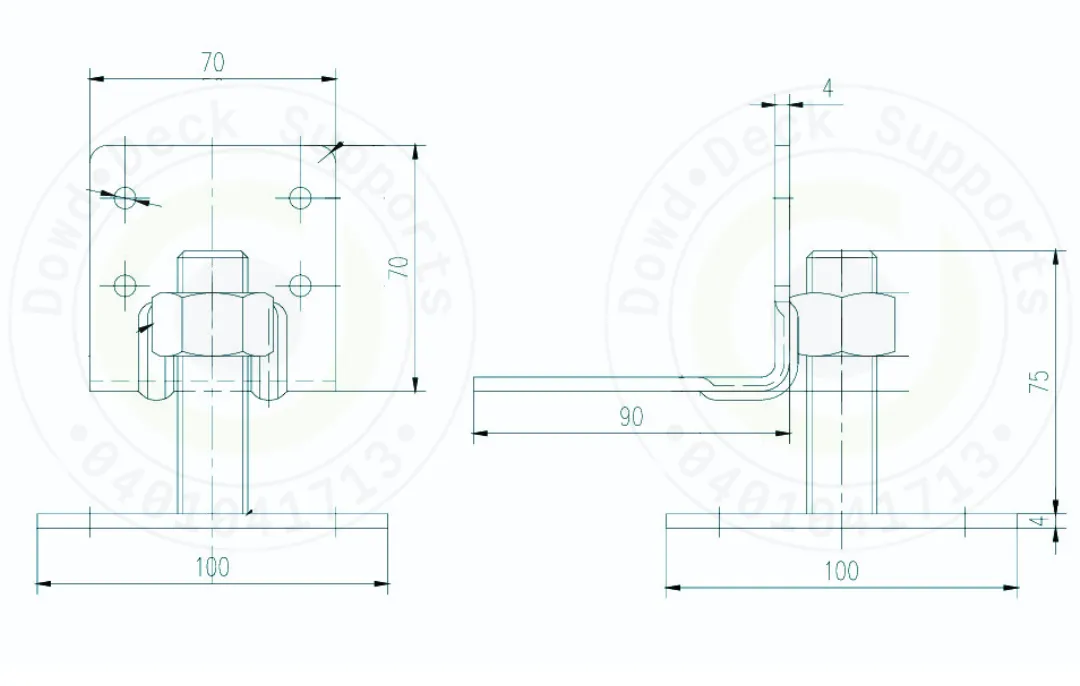

L-Bracket Dimensions

• 70mm wide x 70mm high L-bracket. Base of L-Bracket is 90mm (can support 2 bearers laminated together)

• 6mm screw holes

Base Dimensions

• 100x100mm base plate

• 20mm threaded rod

• 12mm holes

Load rating 1500kg per support bracket

It is recommended you check with your local council before starting any construction project, to ensure you abide by building codes

Resources and documents to help you build your deck:

Testing and Certification

click here

To work out Stumps, Bearers and Joists - Deck Calculator - Detailed Plans and Costs - Metric (blocklayer.com)

To work out how many decking boards you need - Decking Calculator (calculateadeck.com.au)
