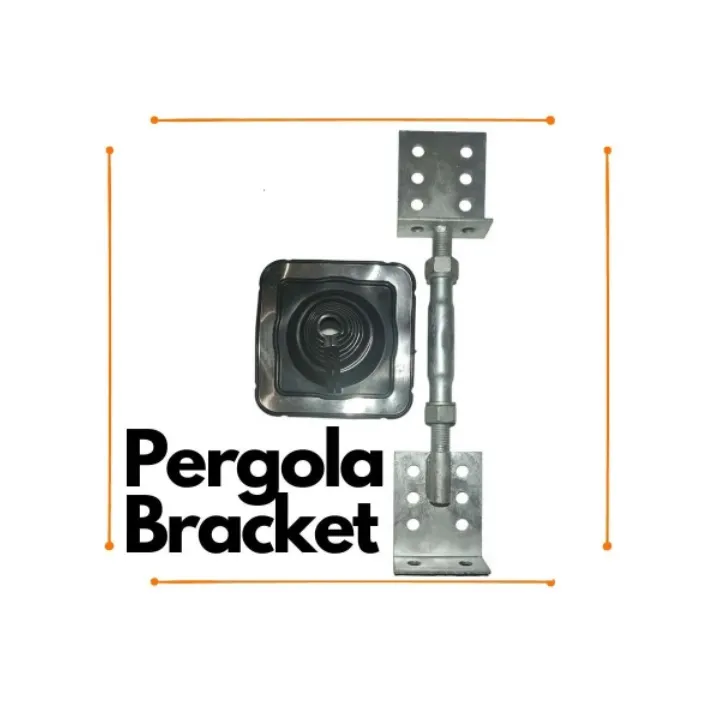

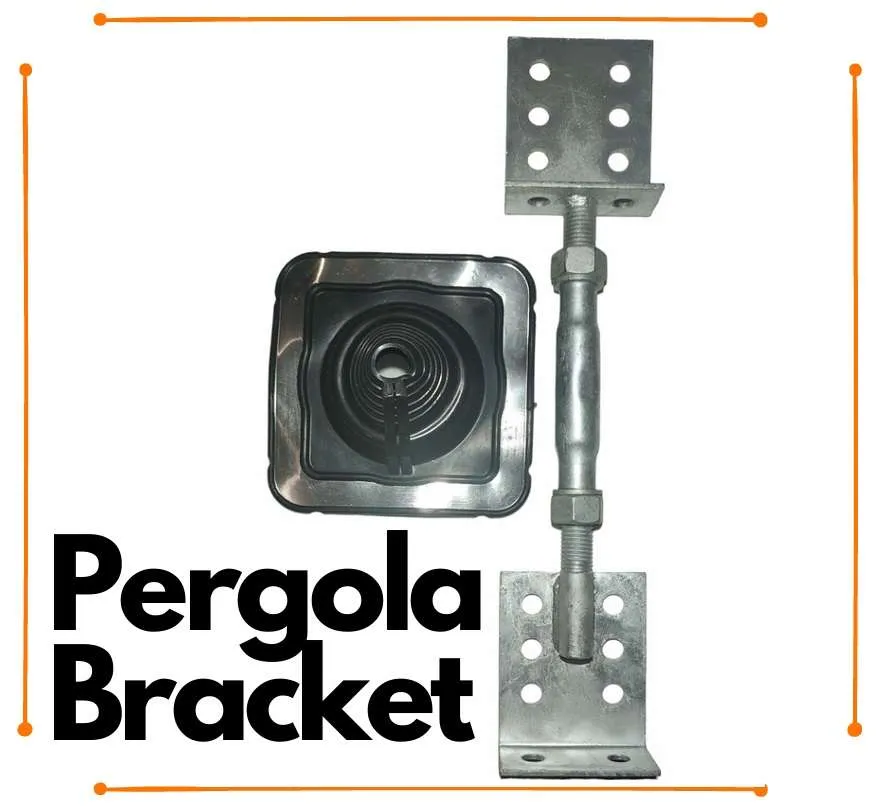

Dowd Pergola Roof Riser Extension Bracket

For Pergolas & Carports

AU$40.00

Out of stock

Roof Extension Height Adjustable Bracket.

Free Shipping. Pickup available if you need your item quick (location Hoppers Crossing).

height adjustable roof riser extenda bracket for pergolas and carports,

perfect for installing new roof lines over existing gutter.

Easily attach to house rafters and enjoy added weather protection with included weather seal.

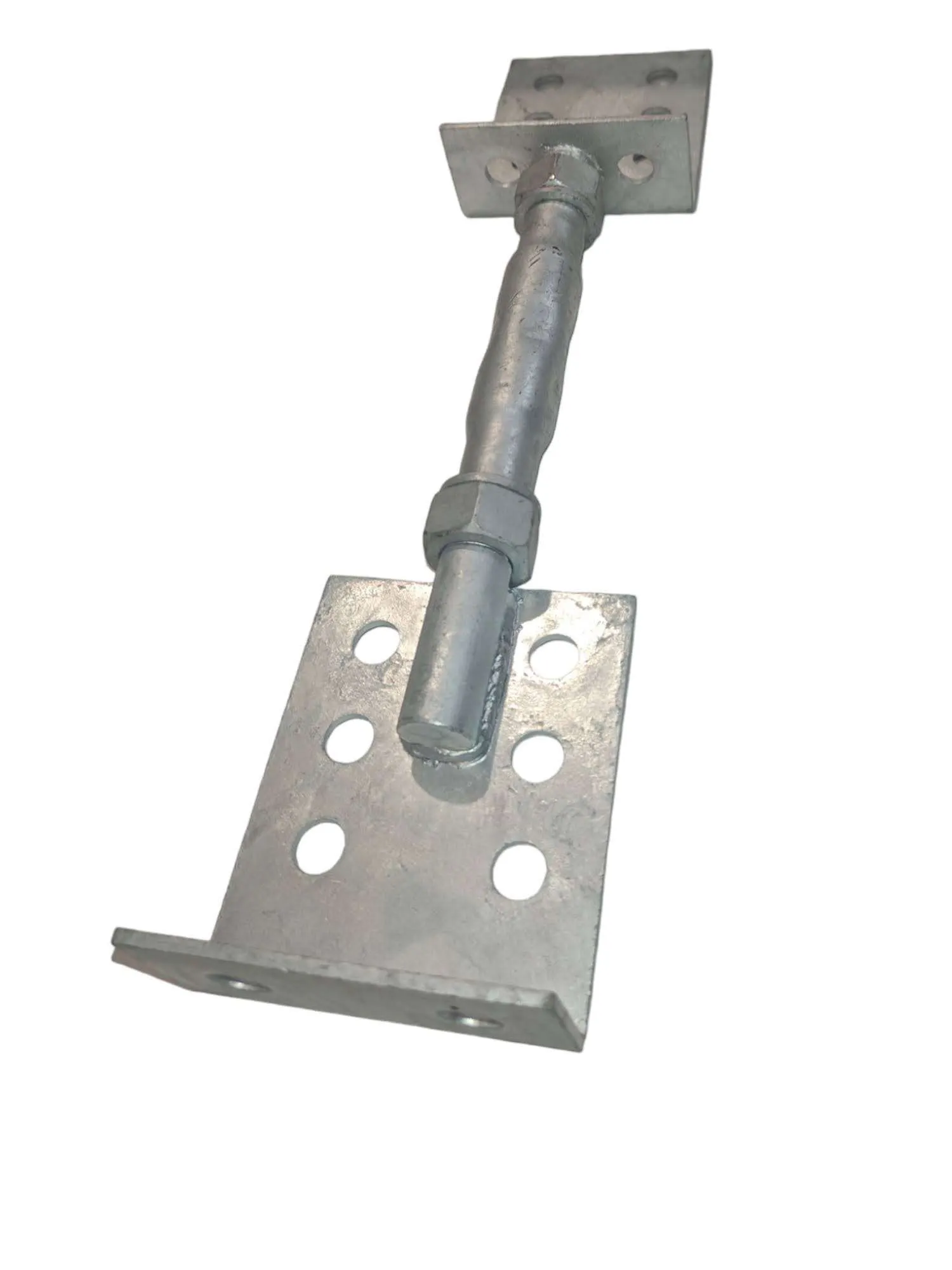

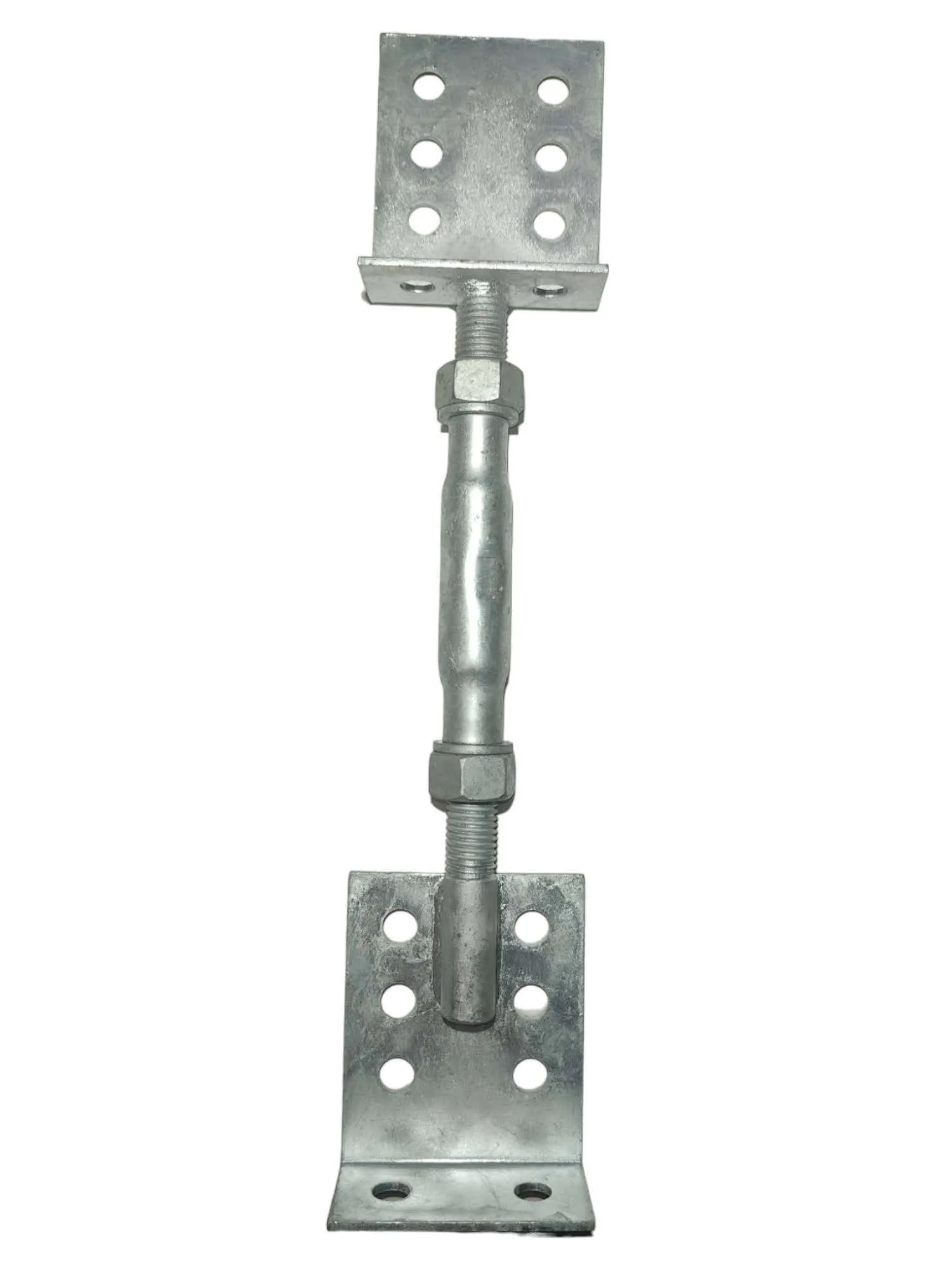

Height adjustable roof riser bracket for pergolas and carports

  • Height adjustable roof riser bracket for pergolas and carports

  • Perfect for installing new roof lines over existing gutter

  • Easily attach to house rafters and enjoy added weather protection with included weather seal.

  • Unique designed ADJUSTABLE CENTRAL SHAFT allows you to adjust the support "after the fact", which means you can adjust it AFTER the frame is screwed to it. Useful to make micro adjustments without having to unscrew anything.

  • SUPERIOR rust resistance with Hot Dipped Galvanised steel

  • Locking nuts prevent movement

  • 280-330mm height range

  • L-Bracket is 110mm high x 45mm deep

  • 2000kg load rating (down-force)

  • 1500kg wind rating (up-force)


Dimensions

  • 280-330mm height range

  • L-Bracket is 110mm high x 45mm deep

  • 20mm threaded rod with L-Bracket

  • 2000kg load rating (down-force)

  • 1500kg wind rating (up-force)

  • 13mm holes on L Bracket. To suit 12mm bolts
