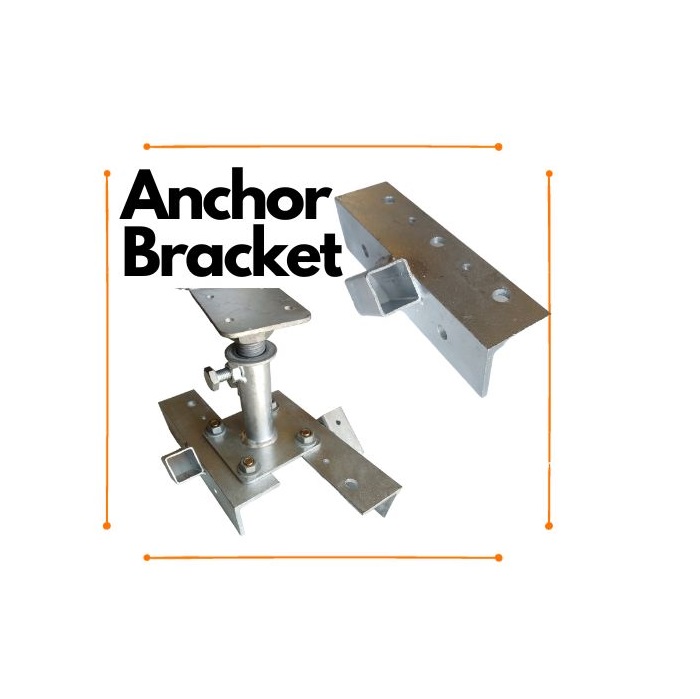

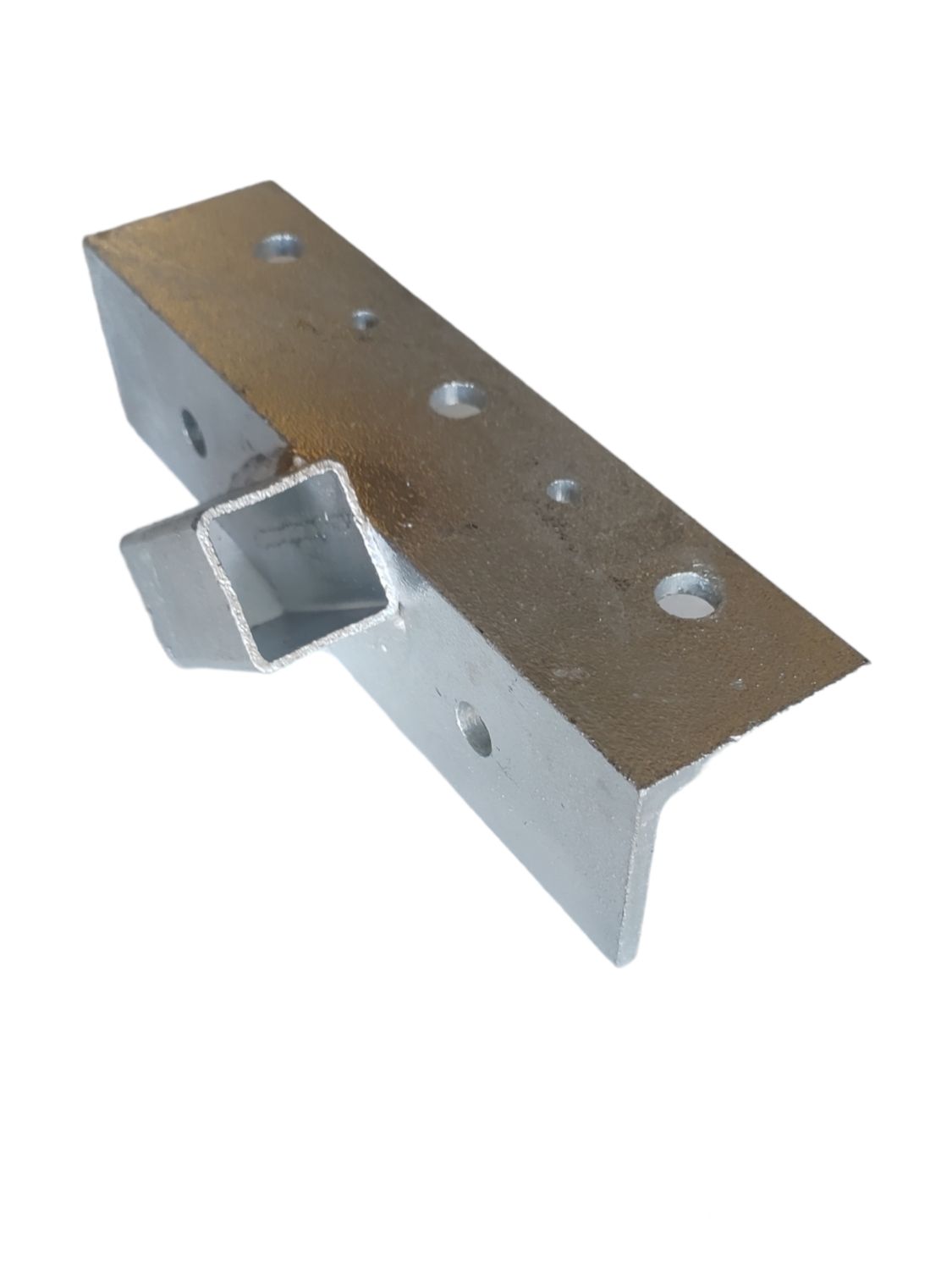

Dowd Anchor Pin Foundation Bracket

• Can be used with Dowd Adjustable Deck Support G2 for models 95-125mm or greater.

• Uses the principle of pin foundations which mimics a tree root. Creates bearing, uplift and lateral strength.

• No need to dig holes and pour concrete footings means you can build your deck in a day. SAVING TIME & LABOUR

• Make from 5mm thick steel

• Hot dipped galvanised coating

How does it work?

1. You simply attach 2 brackets to our Dowd Adjustable Deck Support G2 model.

2. Purchase seperately a 25mm (1 inch) square or round galvanised pipe. (min 500mm length)

3. Insert the pipe into the tube on the bracket and hammer into the ground

DONE!

No more waiting for concrete footings to dry. Start building straight away!
